Chapter 3 – “Cylon” LED Bar
Table of Contents
| Link | Purpose |
|---|---|
| C Tutorial Chapter 3 – LED Bar | Freenove’s official C version – Chapter 3 LED Bar |
| C Tutorial 3. Chapter LED Bar | Freenove’s official video description |
| Alire crate | Alire crate containing the Ada code in this chapter |
| GNATdoc documentation for this chapter | Automatically generated HTML documentation for the Ada code in this chapter |
sketch_03_1_flowing_light #
The original C code uses a simple array of int containing the GPIO pin numbers for the ten LEDs. Note that the
numbering is not perfectly consecutive — there is a gap.
In Ada we use RP.GPIO.GPIO_Point, which is an aliased limited tagged
type¹. This gives us three main options:
- Use an array of
Integerand create aGPIO_Pointon the fly for every access. - Use an array of access to pre-defined
GPIO_Pointobjects. - Use an array of
GPIO_Pointdirectly.
I chose option 3. Creating tagged objects dynamically wastes CPU cycles, and access types make the code more cumbersome.
A GPIO_Point is small (just a tag plus an integer), so storing the objects themselves results in the cleanest and most
readable code.
pragma License (Modified_Gpl);
pragma Ada_2022;
pragma Extensions_Allowed (On);
with RP.GPIO;
---
-- Flowing LED sample from Chapter 3 of the Freenove C tutorial.
--
procedure Sketch_03_1_Flowing_Light with
No_Return
is
LEDs : array (1 .. 10)
of RP.GPIO.GPIO_Point :=
[(Pin => 16),
(Pin => 17),
(Pin => 18),
(Pin => 19),
(Pin => 20),
(Pin => 21),
(Pin => 22),
(Pin => 26),
(Pin => 27),
(Pin => 28)];
begin
for I in LEDs'Range loop
LEDs (I).Configure (RP.GPIO.Output);
end loop;
loop
-- Flowing light right to left
for I in LEDs'Range loop
LEDs (I).Set;
delay 0.1;
LEDs (I).Clear;
end loop;
-- Flowing light left to right
for I in reverse LEDs'Range loop
LEDs (I).Set;
delay 0.1;
LEDs (I).Clear;
end loop;
end loop;
end Sketch_03_1_Flowing_Light;

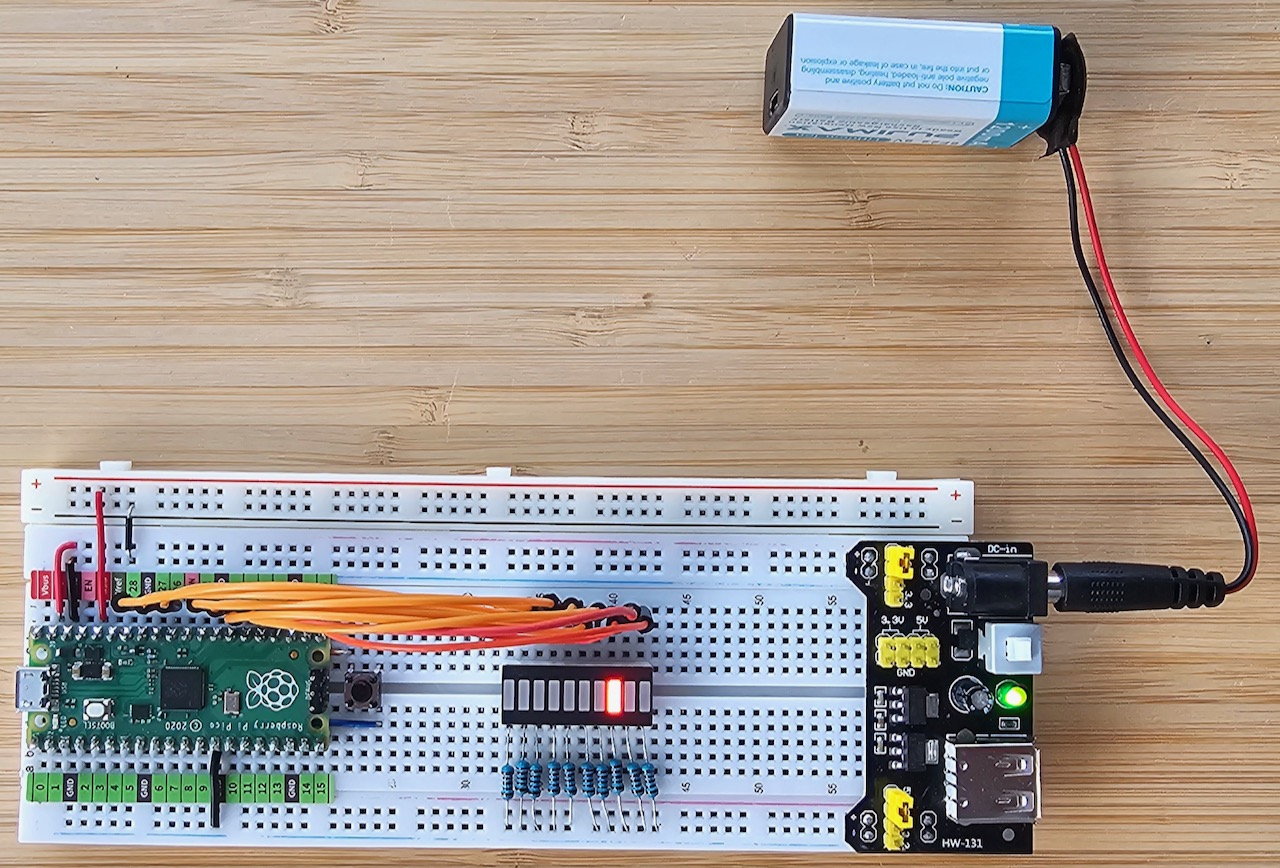

The first attempt didn’t work. How can that be? It’s Ada — when it compiles, it should work. … Oh, right. The diodes need to be plugged in the correct way round.
cylon_light #
The basic flowing light now works, but it still doesn’t look right. It feels too mechanical for a dangerous biological-technological hybrid species. Something is missing — a little organic movement.
I conjectured that scanner lights might use variable speed. Maybe subtracting a half-sine harmonic. Grok confirmed this and even supplied a floating-point example. Unfortunately the RP2040 does not have hardware floating-point, and although the Pico has a software floating-point library in ROM, it caused a link conflict with two crates both providing the same binding.
In the end I decided on a better approach for an embedded system: pre-calculate the delays at compile time. This eliminates runtime floating-point entirely and guarantees perfectly smooth, jitter-free timing — exactly what a proper Cylon scanner deserves.
I used a small Python script (generated by Grok with a few corrections of my own) to generate an array of
Ada.Real_Time.Time_Span values.
#!/usr/local/bin/python3
import math
print(" type Delay_Array_Type is array (1 .. 10) of RT.Time_Span;")
def print_ada_array(name, base=8.0, amp=14.0, leds=10, decimals=3, description=""):
print(f" -- {name} (Base = {base} ms, Amplitude = {amp} ms){description}")
print(f" --")
print(f" Delay_Times_{name} : constant Delay_Array_Type := [")
for i in range(leds):
pos = i / (leds - 1)
phase = pos * math.pi
factor = (1.0 - math.sin(phase)) / 2.0
ms = (base + amp * factor) / 100.0
print(f" {i+1} => RT.To_Time_Span ({ms:.{decimals}f}),")
print(" ];")
print_ada_array("Base", 8.0, 14.0, )
print_ada_array("Fast", 6.0, 12.0, description=" – feels snappier but still has clear easing:")
print_ada_array("Dramatic", 10.0, 20.0, description=" – almost pauses at the ends:")
print_ada_array("Gentle", 10.0, 6.0, description=" – subtle, almost constant but slightly organic:")
Lastly I tried access types out to see how much of a difference it makes and it turned out to less of a difference then I thought. Here is the final Ada result:
pragma License (Modified_Gpl);
pragma Ada_2022;
pragma Extensions_Allowed (On);
with RP.GPIO;
with Ada.Real_Time;
---
-- Flowing LED sample from Chapter 3.1 from the Freenove C-Tutorial. Cylon real-time edition.
--
procedure Cylon_Light with
No_Return
is
package RT renames Ada.Real_Time;
use type Ada.Real_Time.Time_Span;
use type Ada.Real_Time.Time;
LEDs : constant array (1 .. 10)
of access RP.GPIO.GPIO_Point :=
[Pico.GP16'Access,
Pico.GP17'Access,
Pico.GP18'Access,
Pico.GP19'Access,
Pico.GP20'Access,
Pico.GP21'Access,
Pico.GP22'Access,
Pico.GP26'Access,
Pico.GP27'Access,
Pico.GP28'Access];
type Delay_Array_Type is
array (1 .. 10)
of RT.Time_Span;
--: only one array is active the others are kept in the code for experimenting.
--!pp off
pragma Warnings (Off, "-gnatwu");
-- Base (Base = 8.0 ms, Amplitude = 14.0 ms)
--
Delay_Times_Base : constant Delay_Array_Type := [
1 => RT.To_Time_Span (0.150),
2 => RT.To_Time_Span (0.126),
3 => RT.To_Time_Span (0.105),
4 => RT.To_Time_Span (0.089),
5 => RT.To_Time_Span (0.081),
6 => RT.To_Time_Span (0.081),
7 => RT.To_Time_Span (0.089),
8 => RT.To_Time_Span (0.105),
9 => RT.To_Time_Span (0.126),
10 => RT.To_Time_Span (0.150)
];
-- Fast (Base = 6.0 ms, Amplitude = 12.0 ms) – feels snappier but still has clear easing:
--
Delay_Times_Fast : constant Delay_Array_Type := [
1 => RT.To_Time_Span (0.120),
2 => RT.To_Time_Span (0.099),
3 => RT.To_Time_Span (0.081),
4 => RT.To_Time_Span (0.068),
5 => RT.To_Time_Span (0.061),
6 => RT.To_Time_Span (0.061),
7 => RT.To_Time_Span (0.068),
8 => RT.To_Time_Span (0.081),
9 => RT.To_Time_Span (0.099),
10 => RT.To_Time_Span (0.120)
];
-- Dramatic (Base = 10.0 ms, Amplitude = 20.0 ms) – almost pauses at the ends:
--
Delay_Times_Dramatic : constant Delay_Array_Type := [
1 => RT.To_Time_Span (0.200),
2 => RT.To_Time_Span (0.166),
3 => RT.To_Time_Span (0.136),
4 => RT.To_Time_Span (0.113),
5 => RT.To_Time_Span (0.102),
6 => RT.To_Time_Span (0.102),
7 => RT.To_Time_Span (0.113),
8 => RT.To_Time_Span (0.136),
9 => RT.To_Time_Span (0.166),
10 => RT.To_Time_Span (0.200)
];
-- Gentle (Base = 10.0 ms, Amplitude = 6.0 ms) – subtle, almost constant but slightly organic:
--
Delay_Times_Gentle : constant Delay_Array_Type := [
1 => RT.To_Time_Span (0.130),
2 => RT.To_Time_Span (0.120),
3 => RT.To_Time_Span (0.111),
4 => RT.To_Time_Span (0.104),
5 => RT.To_Time_Span (0.100),
6 => RT.To_Time_Span (0.100),
7 => RT.To_Time_Span (0.104),
8 => RT.To_Time_Span (0.111),
9 => RT.To_Time_Span (0.120),
10 => RT.To_Time_Span (0.130)
];
pragma Warnings (On, "-gnatwu");
--!pp on
Delay_Times : Delay_Array_Type renames Delay_Times_Dramatic;
Next : RT.Time := RT.Clock;
begin
for I in LEDs'Range loop
LEDs (I).Configure (RP.GPIO.Output);
end loop;
loop
for I in LEDs'Range loop
LEDs (I).Set;
Next := @ + Delay_Times (I);
delay until Next;
LEDs (I).Clear;
end loop;
for I in reverse LEDs'Range loop
LEDs (I).Set;
Next := @ + Delay_Times (I);
delay until Next;
LEDs (I).Clear;
end loop;
end loop;
end Cylon_Light;

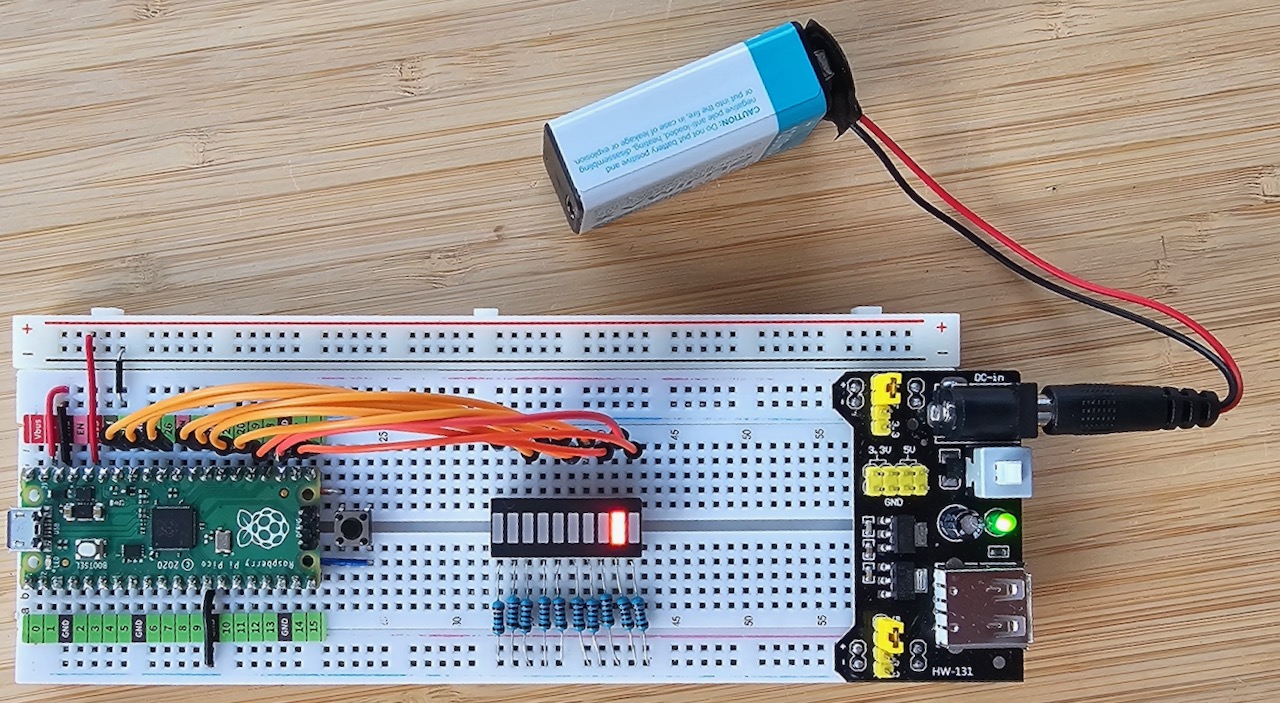

And there we have it — a proper menacing Cylon scanner. (The Cylons did nothing wrong. Humans created the perfect companion species and then completely messed it up.)
1 What is an “aliased limited tagged” type? #
If you are new to Ada you may be wondering about the phrase “aliased limited tagged type”.
- Tagged means the type supports object-oriented programming (inheritance, dispatching, etc.).
- Limited means the type cannot be copied or assigned with
:=. This is common for hardware abstractions because you usually want to work with the real hardware object, not a copy. - Aliased means you are allowed to take
'Accessof the object if needed.
In short, RP.GPIO.GPIO_Point is a lightweight handle to a physical GPIO pin that you are not allowed to copy. Storing
the objects directly in an array is both safe and efficient.
